Ultrawave QS10 Ultrasonic Cleaning Bath

Ultrawave QS10

The QS10 Ultrasonic Cleaning Bath offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS10 has been designed with longer components in mind to offer superior cleaning performance.

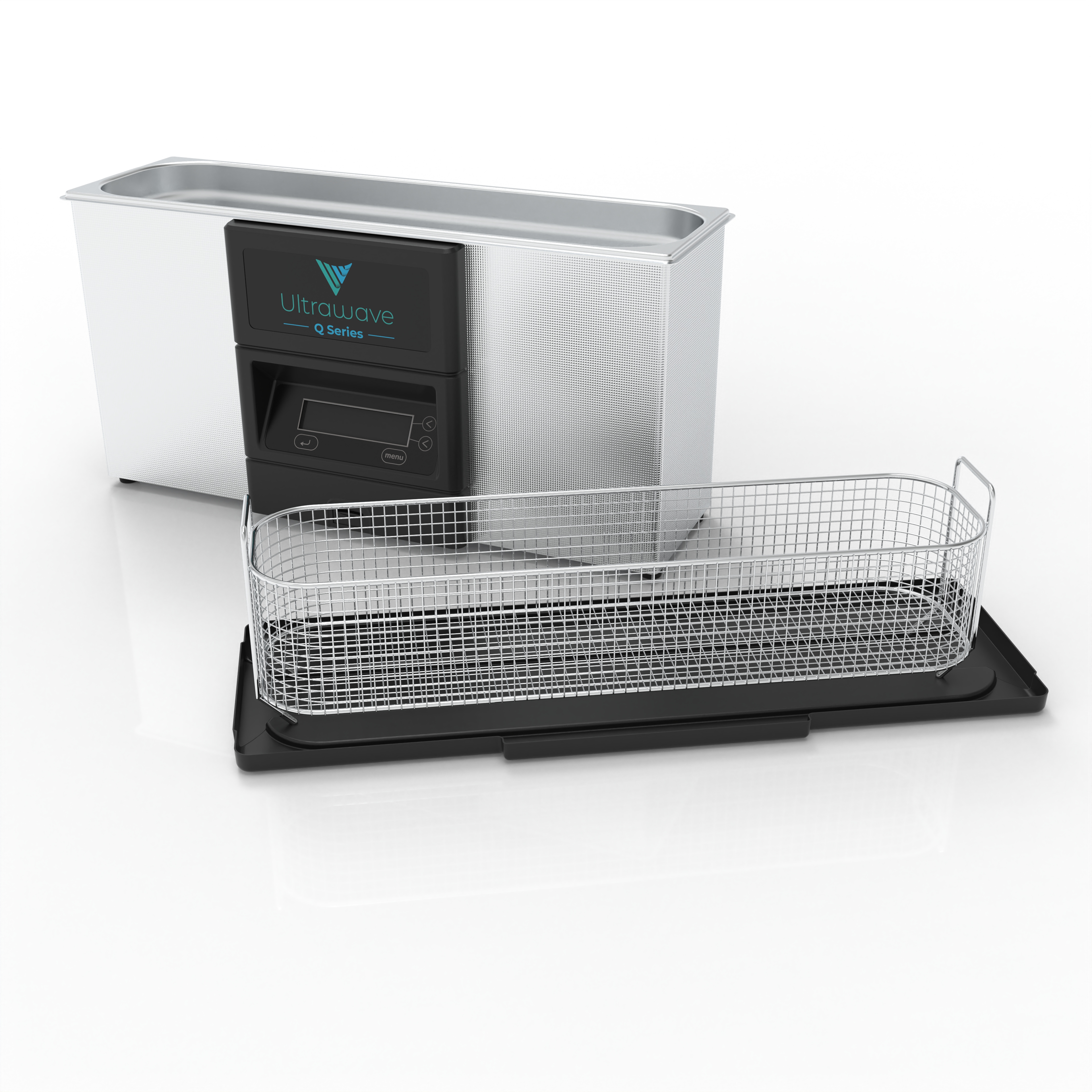

The QS10 Ultrasonic Cleaning Bath is easily operated digital time and temperature control interface, with a 9.5 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.

It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.

Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745

Specifications

Overall Dimensions

• 545 x 315 x 265mm (W x D x H)

Internal Tank Dimensions

• 505 x 140 x 150mm (W x D x H)

Basket Dimensions

• 465 x 100 x 110mm (W x D x H)

Maximum Capacity

• 10.5 Litres

Working Capacity

• 9.5 Litres

Construction

• 304 stainless steel tank

Control

• Digital control
• Time (0 to 99 minutes)
• Temperature (Ambient to 70°C)

Operating Features

• Degas mode
• Digital traceability
• Drain valve
• Energy saving mode
• Fluid level protection
• Frequency Leap Technology
• Heated
• Power adjust

Ultrasonic Power

• 200W

Operating Frequency

• 32 to 38kHz

Heating Power

• 250W

Required Services

• 230VAC
