Ultrawave Hygea D3ntal

Ultrawave Hygea D3ntal

The hygea d3ntal Ultrasonic Cleaner brings a new level of performance and reliability to the cleaning and pre-disinfection of dental surgical instruments and medical devices. It meets HTM01-05 and ISO standards, giving dental professionals complete confidence in every stage of instrument reprocessing.

The hygea d3ntal Ultrasonic Cleaner is a Class I Medical Device that complies with MDR (EU) 2017/745, the system also satisfies the strict regulatory requirements expected in modern clinical environments.

The unit features Ultrawave’s Frequency Leap Technology, which generates homogenous cavitation activity throughout the ultrasonic bath. As a result, this innovation reduces dead spots and standing waves, creating a more consistent scrubbing action and exceptional cleaning results.

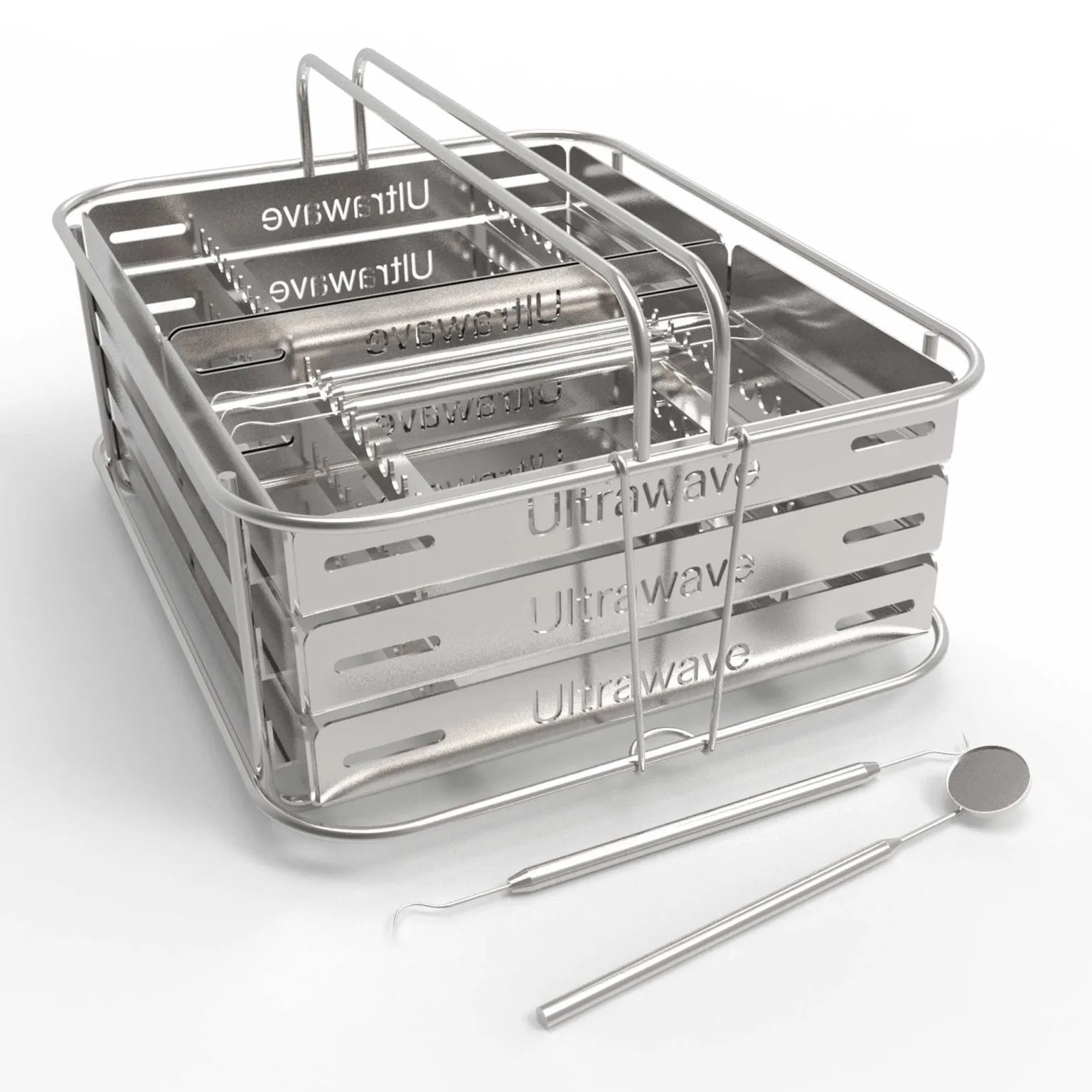

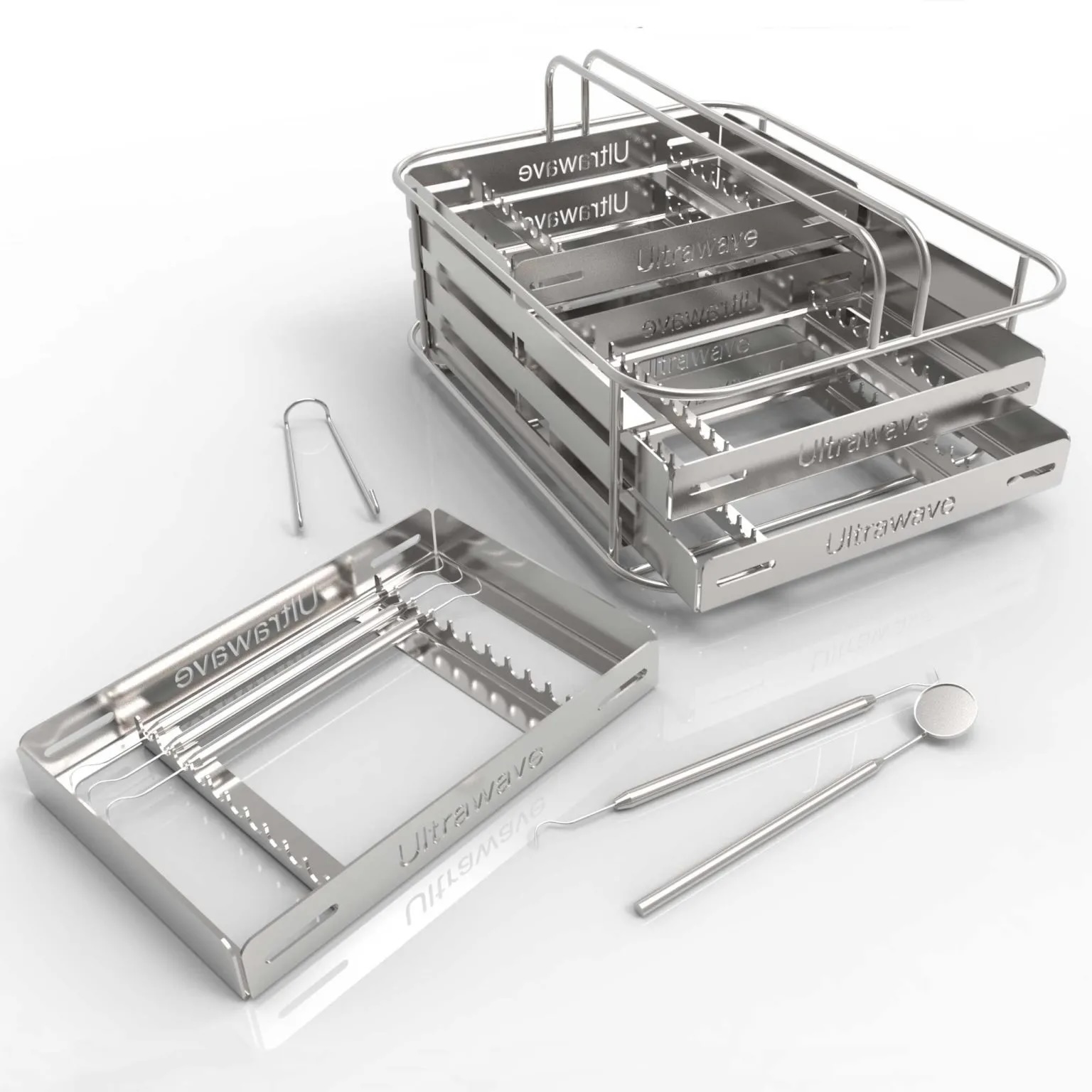

The hygea d3ntal also improves workflow efficiency. Its three-tier basket system can hold up to 60 instruments per rapid cycle, allowing busy practices to process more instruments without adding extra time or labour. Independent testing shows that even heavily contaminated instruments come out clean and protein-free after a rapid 6-minute cycle, helping teams maintain high infection-control standards while staying on schedule.

The hygea d3ntal includes a heated, digitally controlled ultrasonic bath with a 10-litre maximum capacity (8-litre working capacity).

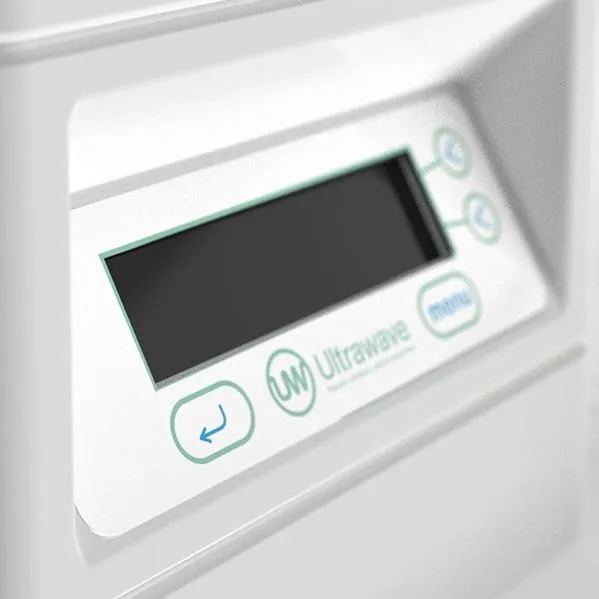

In addition, a menu driven control panel allows simple adjustment of cycle time (0 to 99 minutes), user temperature setting (20°C to 40°C), ultrasonic power and frequency adjustment for precise and accurate processing. See example set-up of the hygea d3ntal Ultrasonic Cleaner.

Furthermore, features such as degas mode, a fluid level sensor, and wireless connectivity, the hygea d3ntal delivers consistent, repeatable, and traceable cleaning performance every time.

For the best results, we recommend pairing the unit with Ultrawave’s Sonozyme 3 – an advanced pH-neutral tri-enzymatic detergent for cleaning and pre-disinfection of surgical instruments and medical devices. Together, they deliver optimal cleaning efficiency and peace of mind.

Specifications

Overall Dimensions

• 345 x 285 x 265mm (W x D x H)

Loading Basket

• Basket Carrier with Cassettes

Basket Dimensions

• 265 x 205 x 140mm (W x D x H)

Capacity

• Up to 60 standard instruments + 8 litres of working fluid capacity

Construction

• 304 stainless steel tank

Control

• Menu driven LCD control panel
• User Temperature Setting (20°C to 40°C)
• Time (0 to 99 minutes)
• Up to 60 instruments in one 6 minute cycle

Operating Features

• Basket carrier compatible with variety of baskets and cassettes
• Degas function
• Frequency Leap Technology
• Process Monitor of Lid
• Thermal over-temperature cut-off prevents the risk of protein coagulation
• Detergent added reminder
• Wireless connectivity

Compliance and approvals

• HTM 01-05 and a Class I Medical Devices, compliant to MDR (EU) 2017/745

Required Services

• Mains Connection 230VAC

Download product information
