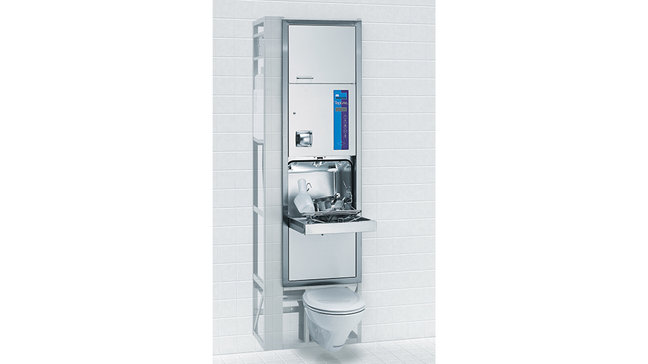

Meiko TopLine 30 WC bedpan washer-disinfector
Meiko TopLine 30 WC bedpan washer-disinfector
When it comes to reprocessing care utensils, patient-specific solutions are the best choice, especially in isolation wards, intensive care units, and anywhere else where you want to minimise the distance between the patient and the nearest washer-disinfector. The installation frame for this bedpan washer-disinfector comes fully installed and ready for connection to the mains. It has been carefully designed to fit above the patient's toilet. A central connection point suitable for all standard commercial brands of flush toilet is installed behind the tiled wall. This solution gets the perfect balance between hygiene and aesthetics.
| Dimensions | |
| Width | 650 mm |
| Depth | 450 mm |
| Height | 2210 mm |
| Water connection | |
| Cold water | R 1/2" |
| Hot water 45-60°C | R 1/2" |
| Flow pressure | > 1 bar |
| Water flow | > 18 l/min |
| Water drain | |
| Water drain | DN 100 |
| Electrical connection | |
| Standard | 400 V, 3N PE, 50 Hz. 4.6 kW |
| Alternative | 230 V, 1N PE, 50 Hz. 2.8 kW |
| Noise level | |
| Workplace-related emission value LpA | 50 dB (A) |
